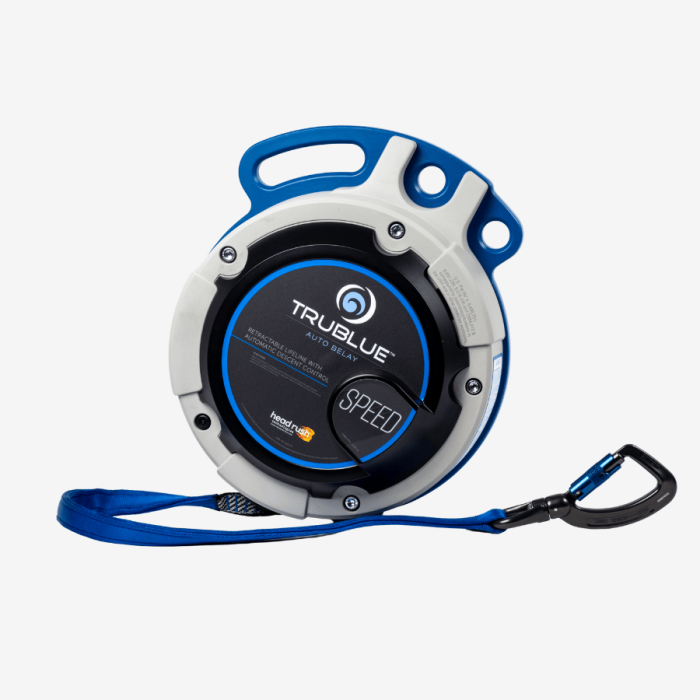

TRUBLUE SPEED Auto Belay

As low as: €2,995.00

The TRUBLUE SPEED Auto Belay has the same reliability and quality reputation as the TRUBLUE but offers fast retraction specifically for speed climbing competitions and training.

  • Official Auto Belay of USA Climbing
  • Self regulating magnetic braking system
  • Designed for indoor or outdoor use
  • Trusted worldwide with high-quality parts



If selecting TRU-CLIP Connector, additional Key Links may be needed for optimal coverages.

Get A Quote

We found other products you might like!

Mounting kit for TRUBLUE Auto Belay and QUICKflight Free Fall Devices including nylon climbing webbing, steel locking carabiners and a steel chain all rated for climbing anchors.
Mounting Kit for TRUBLUE
€60.00
Use this turnkey kit for hassle-free mounting of your TRUBLUE Aut
Get A Quote
TRU-Mount
TRU-Mount
€150.00
The TRU-Mount Auto Belay mounting system is an elegant and cost-e
Get A Quote
Belay Gate XL - Rectangle
Belay Gate XL - Rectangle
€140.00
Our largest Belay Gate promotes climber safety by reducing clippi
Get A Quote

Description / TRUBLUE SPEED Auto Belay

Product Details

The TRUBLUE SPEED Auto Belay is based on our TRUBLUE, the most widely used and trusted auto belay in the world. Retraction speed is fast enough to outrun even the world’s elite speed climbers, and our magnetic braking provides the familiar, gentle descent of a TRUBLUE.

Benefits

  • Same Magnetic Braking: It's the same patented technology that climbers have come to love because of the gentle descent.
  • Same Reliability and Low Maintenance: Eddy current magnetic braking is friction-free and has no sacrificial wear parts in the braking system, so our devices are extremely reliable and low maintenance.
  • Retraction Speed: The TRUBLUE SPEED Auto Belay retracts at 2.7 seconds for a 10m wall, and 3.5 seconds for a 15-meter wall—fast enough to outpace IFSC standards and accommodate current and future world records.
  • Pulling Force: Per IFSC standards, the TRUBLUE SPEED Auto Belay exerts minimal force on a climber, so the results are all yours.
Specification
  • Rated Body Weight: 10 to 136 kg (22 to 300 lbs)
  • Device Weight: 18.5 kg (41 lbs)
  • Maximum Mounting Height: 16 m (52.8 ft)
  • Minimum Mounting Height: 7.5 m (24.6 ft)
  • Maximum Descent Rate: 2.0 m/s (6.6 ft/s)
  • Temperature Range:
    • Operating: -4°C to 60°C (25°F to 140°F)
    • Operating (Dry): -10°C to 60°C (14°F to 140°F)
Safety Standards

The TRUBLUE, TRUBLUE XL and TRUBLUE SPEED Auto Belays conform to Regulation (EU) 2016/425 and comply with the following prevailing Safety regulations:

  • AS/NZS 1891: Industrial fall-arrest systems and devices - Part 3: Fall arrest devices
  • CSA Z259.2.3-99: Descent Control Devices
  • EN 341: 2011 Class 1A: Personal protective equipment against falls from a height – Descender devices
  • ANSI/ASSE Z359.4: Safety Requirements for Assisted-Rescue and Self-Rescue Systems, Subsystems and Components
  • EN 360:2002: Personal protective equipment against falls from a height - Retractable type fall arresters
    • Section 4.5: Maximum force < 6kN for 150kg capacity
Product Resources

Preferred by owners, operators, and thrill-seekers everywhere

testimonial
testimonial
testimonial
testimonial
testimonial
testimonial
testimonial

Common Questions

Looking for a little extra help?
How is SafeLine used now?

TruBlue Safeline is one device with many missions. Currently, you can fine SafeLines in fire and utility worker training facilities, a crucial part of emergency egress systems for marine ferries, attached to machinery in dropped object protection plans, and more.

How often does a SafeLine need to be serviced?

TruBlue SafeLine requires service inspections 15 months after the manufacturing date and every 12 months thereafter to ensure a high standard of performance and safety. We offer a SafeLine Service Subscription program, which provides a quick swap for a recertified fleet device with zero downtime, as well as other benefits. You still own thedevice.

What mounting height is SafeLine compatible with?

SafeLine with 12.5m (41ft) webbing:

  • Maximum mounting height of 12.5 m (41 ft)
  • Minimum mounting height of 4.5 m (14.8 ft)

SafeLine with 20m (65.6ft) webbing:

  • Maximum mounting height of 20 m (65.6ft)
  • Minimum mounting height of 12 m (39.4 ft)

It is important to note that the maximum and minimum mounting height limits listed for all SafeLine models are requirements, not recommendations. To ensure safe operation, devices must be mounted within the specified mounting height range.

The mounting height for all SafeLine models is measured from the nozzle of the device to the ground.
