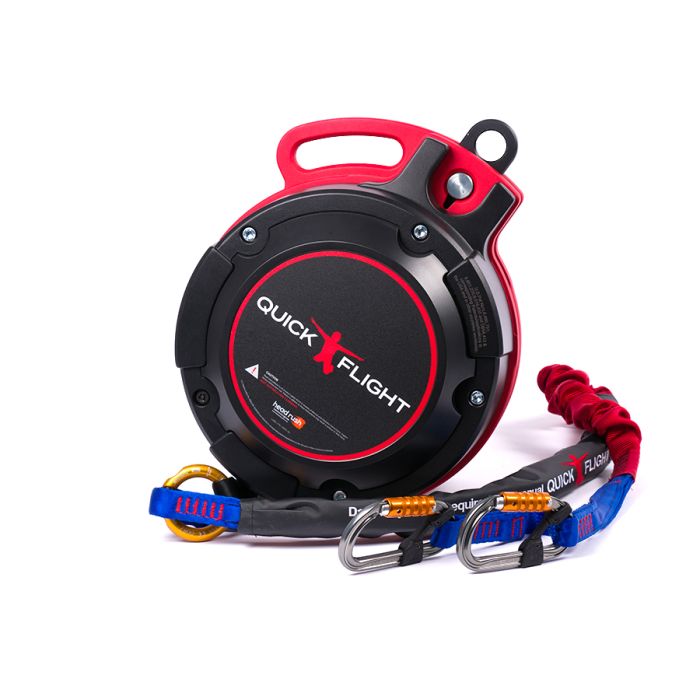

The QuickFlight® Free Fall Device provides an exciting free fall experience with high throughput and low operational costs for ropes courses, zip line towers, family entertainment centers, and more. You can choose your device based on your mounting height options and RipCord configuration to increase the free fall distance. Mounting height distances provided in the selection guide.
Please ensure you are buying the appropriate device and configuration for your mounting height.
Bring free fall to your business with QuickFlight, an exhilarating, high throughput free fall thrill for all ages!
Features:
True free fall: Our magnetic braking technology enables QuickFlight to offer an unrestricted ‚"true free fall‚" up to 4m (13 ft). True free fall combined with a high GPA (ground proximity awareness) factor results in a complete free fall experience truly unlike anything in the industry.
Dual line system. Redundant, dual line system and built-in Overload Protection Assemblies (OPAs) serve to maximize rider comfort and operator peace of mind.
Operational Compatibility. Mount the QuickFlight indoors or out with options for low mounting that ranges up to 23 m (75 ft). A wide range of weights (20-130kg/44-285lbs) and mounting options allow for a custom free fall experience that is compatible with the height of your structures and comfort levels of your clientele.
Eddy Current, Magnetic Braking Technology. Magnetics allow for a compact design that is easy to install, carry, and service, making it perfect for a top anchor on an existing tower or platform. Eddy current, magnetic braking used in free fall offers a soft catch and smooth descent, cycle after cycle.
High Throughput: The QuickFlight retracts quickly and safely, allowing for more throughput than other free fall devices. Easy installation, portability, and field replaceability of parts means you will save more over time, watching your customers free fall while your profits skyrocket!

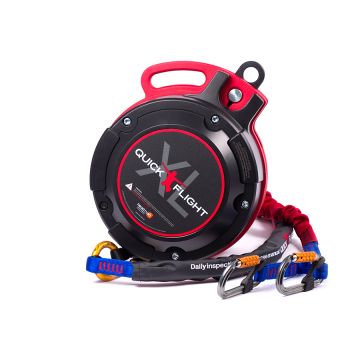

Note: The primary difference between the QuickFlight and QuickFlight XL is mounting height.

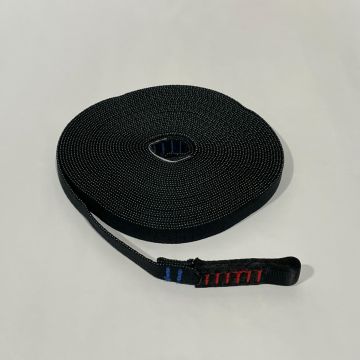

Every QuickFlight comes with an upper webbing attached to a RipCord option and two carabiners (with lanyard keepers) on the webbing line. You will need separate mouting equipment to mount the QuickFlight device‚ NOT INCLUDED. We recommend purchasing the QuickFlight Mounting Kit.
Specification
Rated Working Capacity: 20 to 130 kg (44 to 285 lbs)
Dimensions: 80 x 320 x 216 mm (15 x 12.6 x 8.5 in)
Device Weight: QuickFlight: 25 kg (55 lbs)
Warranty (all devices): 2 years
ASTM F2291-11: Standard Practice for Design of Amusement Rides and Devices
QuickFlight Low Mount
Minimum Mounting Height - 6.0 m (19.7 ft)
Maximum Mounting Height - 8.3 m (27.2 ft)
QuickFlight 1 m RipCord
Minimum Mounting Height - 8 m (26.3 ft)
Maximum Mounting Height - 14.3 m (46.9 ft)
QuickFlight 2 m RipCord
Minimum Mounting Height - 9 m (29.6 ft)
Maximum Mounting Height - 15.3 m (50.01 ft)
Safety Standards
Specifications
Rated Working Capacity: 20 to 130 kg (44 to 285 lbs)
Dimensions: 80 x 320 x 216 mm (15 x 12.6 x 8.5 in)
Device Weight: QuickFlight: 25 kg (55 lbs)
Warranty (all devices): 2 years
ASTM F2291-11: Standard Practice for Design of Amusement Rides and Devices
QuickFlight Low Mount
Minimum Mounting Height - 6.0 m (19.7 ft)
Maximum Mounting Height - 8.3 m (27.2 ft)
QuickFlight 1 m RipCord
Minimum Mounting Height - 8 m (26.3 ft)
Maximum Mounting Height - 14.3 m (46.9 ft)
QuickFlight 2 m RipCord
Minimum Mounting Height - 9 m (29.6 ft)
Maximum Mounting Height - 15.3 m (50.01 ft)
What makes TRUBLUE Auto Belays better than the rest?
TRUBLUE Auto Belays use patented magnetic braking technology, also found in high-speed trains and roller coasters. This provides friction-free, reliable braking that eliminates brake pads and reduces wear and maintenance.
Each device undergoes extensive third-party testing by an ISO 17025 accredited lab, ensuring top-tier safety and performance. This results in an extended device lifespan and higher cycle capacity, making TRUBLUE the safest, most durable auto belay on the market.
Why does my TRUBLUE Auto Belay need to be serviced?
TRUBLUE Auto Belays are life-safety devices, and annual service inspections are crucial to maintaining safety standards and ensuring your device warranty remains valid. Lives are quite literally on the line!
Each service includes a comprehensive 62-point inspection, repairs or replacements of worn parts (including webbing), cleaning, and testing across a full range of weights to ensure optimal performance.
How often do I need to service my TRUBLUE Auto Belay?
TRUBLUE Auto Belays require service inspections 15 months after the manufacturing date and every 12 months thereafter to ensure a high standard of performance and safety.
We offer two service options: a standard annual service appointment, where you send in your device for inspection and get the same one back, or contact us for our No Delay Belay program, which provides a quick swap for a recertified fleet device with zero downtime, as well as other benefits.
What wall height is a TRUBLUE Auto Belay compatible with?
